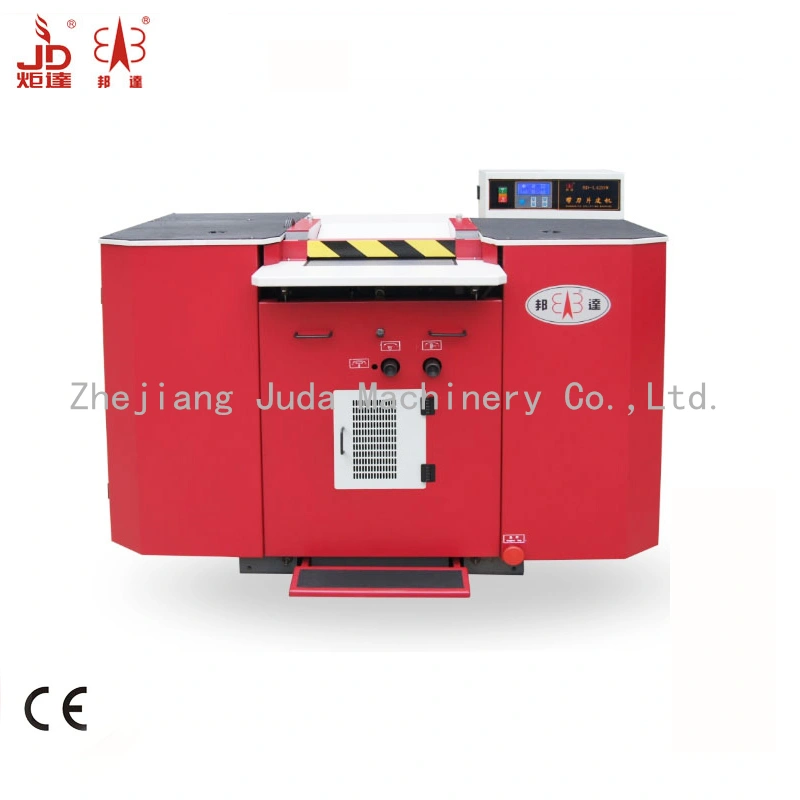

Leather Goods Machine PLC Band Knife Splitting Machine Good Quality

Product Description


Leather Goods Machine PLC Band Knife Splitting Machine Good Quality
Leather Goods Machine PLC Band Knife Splitting Machine Good Quality

ModelBD-L420W
The max width of material420mm
The max thickness of material8mm
The min thickness of material0.15mm with top bar
0.5mm with top feed roller
Feeding speed1-20m/min
Specification of band knife3570×50×0.6mm
Power of motor5kW
Package size1780×1130×1500mm
Net weight720kg
Gross weight810kg

Leather Goods Machine PLC Band Knife Splitting Machine Good Quality

USE

This machine is applied for thinning all kinds of soft and hard leathers with a width of 420mm and thickness below 8mm to required thickness in leather product industry, which makes the product quality higher, the workmanship more refined, and the competitiveness stronger.

CHARCTERS

1. Use PLC liquid crystal display to show the thickness of splitting; equipped with feeding infinitely variable speeds and accurate tally function.

2. New-style panel makes feeding work more convenient and efficient.

3. Equipped with automatic cutting quit function.

4. It has an automatic belt-entangling shut down system and an electronic phase automatic detection system.

5. Equipped with independent leather dust and sharpening dust suction device.

6. Equipped with an optical magnifying by which you can observe the sharpness of knife at any time.

7. Equipped with a single handle to automatically control start-up and adjust the sharpening device.

8. To make splitting more accurate, it can adjust the tool clearance automatically.

9. Automatic knife-feed positioning device makes adjusting knife unnecessary.

10. Extra large flywheel makes knife operation more stable and splitting work more accurate.

11. Accurate track makes flywheel move reliably and makes it more convenient and faster to change tool belt.

12. Mechanical parts are lubricated permanently.

13. Matched with molds which have various functions.


Leather Goods Machine PLC Band Knife Splitting Machine Good Quality
Leather Goods Machine PLC Band Knife Splitting Machine Good Quality
Leather Goods Machine PLC Band Knife Splitting Machine Good Quality



Contact us if you need more details on Sewing Machine. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about PVC PU Skiving Machine、Leather Bag Making Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
