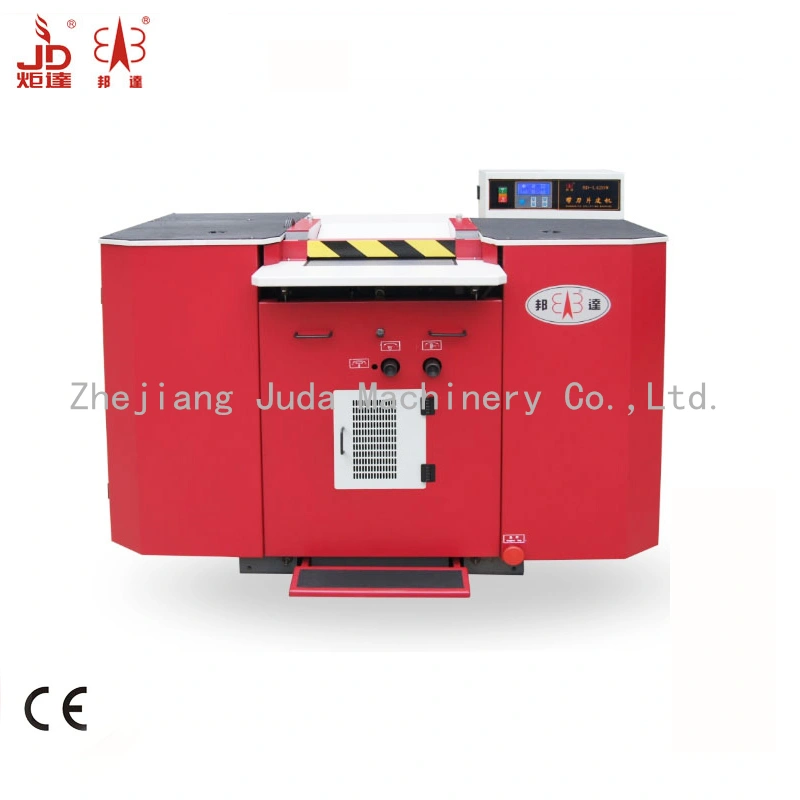

420mm Width PLC Band Knife Splitter Shoe Making Machine
Product Description
| Model | BD-L420W |
| The max width of material | 420mm |
| The max thickness of material | 8mm |
| The min thickness of material | 0.15mm with top bar |
| 0.5mm with top feed roller | |
| Feeding speed | 1-20m/min |
| Specification of band knife | 3570×50×0.6mm |
| Power of motor | 5kW |
| Package size | 1780×1130×1500mm |
| Net weight | 720kg |
| Gross weight | 810kg |
USE
This machine is applied for thinning all kinds of soft and hard leathers with a width of 420mm and thickness below 8mm to required thickness in leather product industry, which makes the product quality higher, the workmanship more refined, and the competitiveness stronger.
CHARCTERS
1. Use PLC liquid crystal display to show the thickness of splitting; equipped with feeding infinitely variable speeds and accurate tally function.
2. New-style panel makes feeding work more convenient and efficient.
3. Equipped with automatic cutting quit function.
4. It has an automatic belt-entangling shut down system and an electronic phase automatic detection system.
5. Equipped with independent leather dust and sharpening dust suction device.
6. Equipped with an optical magnifying by which you can observe the sharpness of knife at any time.
7. Equipped with a single handle to automatically control start-up and adjust the sharpening device.
8. To make splitting more accurate, it can adjust the tool clearance automatically.
9. Automatic knife-feed positioning device makes adjusting knife unnecessary.
10. Extra large flywheel makes knife operation more stable and splitting work more accurate.
11. Accurate track makes flywheel move reliably and makes it more convenient and faster to change tool belt.
12. Mechanical parts are lubricated permanently.
13. Matched with molds which have various functions.
